MINI PLEAT HEPA & GEL SEAL MINI PLEAT HEPA FILTERS

Mini Pleat hepa are designed to meet the needs of critical application where Hepa filtration is required. They are Rated as H13/ H14 Grade. The pressure drop is much lower as compared to conventional filters hence leading to power consumption savings.

Filter media and construction: - Media type:

Fire Retardant, Microfine glass fibre media

- Frame:
  • Material of construction : Aluminium / SS 304
  • For Gel Seal filters a special Silicon Gel is poured to ensure leak proof performance when rested on Knife Edge.

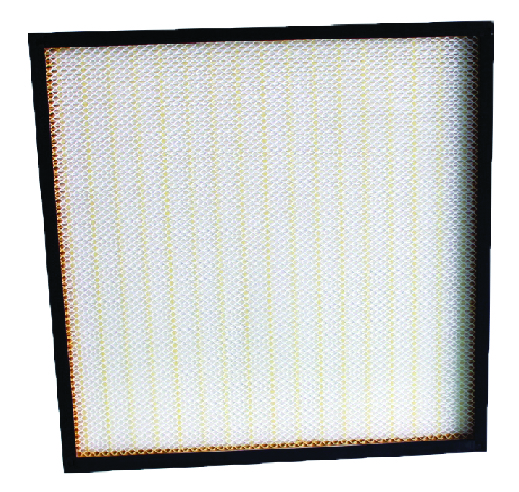

MINI PLEAT HEPA
- Salient Features:
  • Can be used up to 70⁰ Ambient temp
  • Filter media is separated by hot melt thread
  • All filters are 100% leak tested
  • Filter Media is fully bonded with frame
  • Low Pressure rating
- Main Advantages:
  • Robust Construction to withstand harsh environmental conditions
  • Environment friendly construction
  • Enough filter media provided to ensure very low initial pressure drop
  • 100% leak proof construction

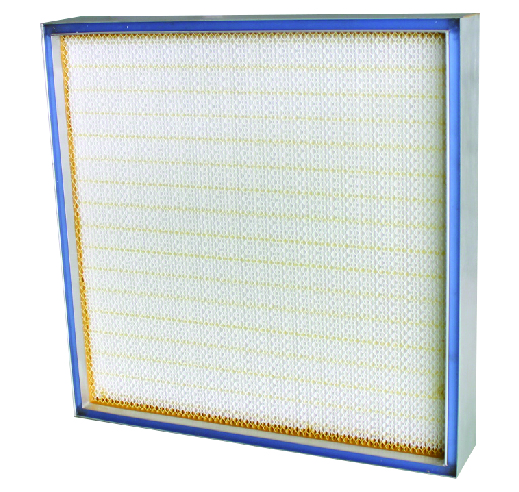

GEL SEAL HEPA
Filters - FA MINI PLEAT CFM CHART & STANDARD SIZES
Typical filter data for standard filter size
Fine Filter Chart
